Złącza Lemo serii B.
Created with Pixso. Lemo B Series Connectors Male Female EGG FGG 2-16 Pin Circular Self Locking Connectors

Lemo B Series Connectors Male Female EGG FGG 2-16 Pin Circular Self Locking Connectors

Nazwa marki: OEM
Numer modelu: Jajko FGG
MOQ: 1PC
Cena £: Zbywalny
Czas dostawy: 3-10 dni roboczych
Warunki płatności: Western Union, MoneyGram, T/T, Paypal
Szczegółowe informacje
Miejsce pochodzenia:
Chiny
Orzecznictwo:
CE,ROHS
Szereg:
Seria Lemo B.
Kontakty:
2-16 pinów
Izolator:
P: PPS
Metoda zakończenia:
Lutować
Cykle godowe:
5000 razy
Typ kontaktu:
Męska wtyczka i żeńskie gniazdo
Ocena IP:
IP50
Tworzywo:
Mosiądz
Kolor:
Srebrny, czarny
Szczegóły pakowania:
Torba PP
Możliwość Supply:
50000PCS miesięcznie
Podkreślić:

Lemo B Series circular connectors

,

self-locking Lemo B connectors

,

EGG FGG 2-16 pin connectors

Opis produktu

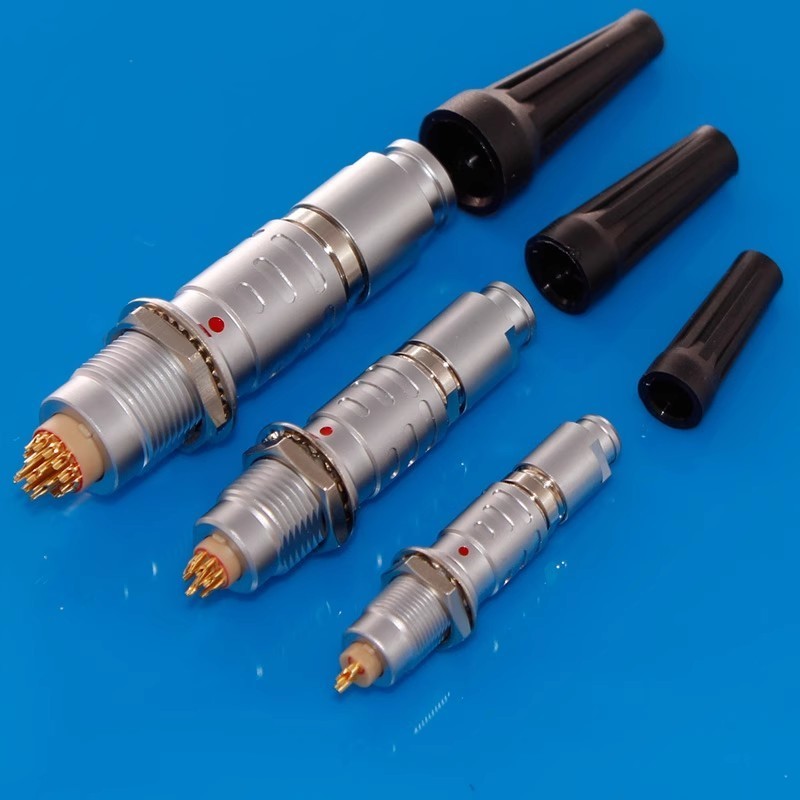

Lemo B Series Connectors Male Female EGG FGG 2-16 Pin Circular Self Locking Connectors
Product Features
  • 100% compatible Lemo B series FGG male plug & EGG female socket
  • 0B 1B 2B 2-16pins free socket for extension cable
  • Application: Audio & Video, Automotive, PCB, Communication, Aviation
  • Housing Material: Brass chrome plated
  • Mating cycles: 5000 times
  • IP Rating: IP50
Lemo B Series Connectors Male Female EGG FGG 2-16 Pin Circular Self Locking Connectors 0
Applications
  • Medical Equipment
  • Test & Measurement
  • Industrial Automation
  • Defense and Aerospace
  • Broadcast and Professional Audio/Video (AV)
  • Research and Scientific Instruments

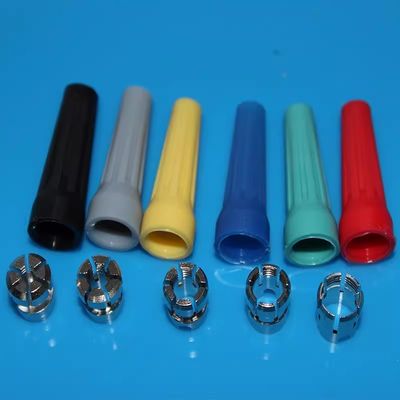

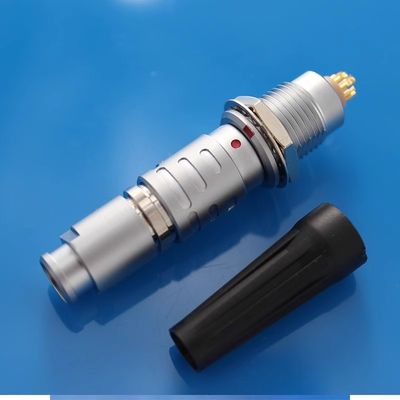

Size & Drawings
Lemo B Series Connectors Male Female EGG FGG 2-16 Pin Circular Self Locking Connectors 1 Lemo B Series Connectors Male Female EGG FGG 2-16 Pin Circular Self Locking Connectors 2

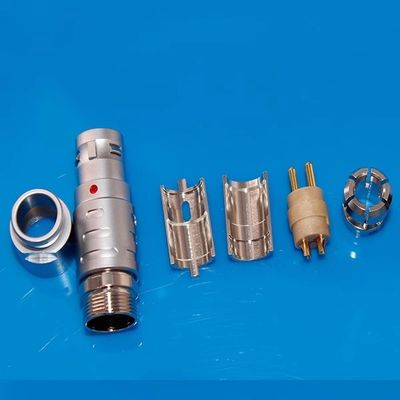

DIY Cable Assembly Process
  1. Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
  2. Put the split insert carrier to the soldered insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
  3. Put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier
  4. Push the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
  5. Screw the collet nut tightly
  6. Hitch the sleeve to the corresponding step of collet nut
Lemo B Series Connectors Male Female EGG FGG 2-16 Pin Circular Self Locking Connectors 3
Frequently Asked Questions
About Price
Q1: Will you please let us have an idea of your price?
A1: In general, our prices are given on a EXW basis.
Q2: Do you give any discount?
A2: I'll surely try my best to help you get those by the best price and good service at the same time, if your order is big enough.
About MOQ
Q3: What is the MOQ?
A3: No MOQ limited, small order is accepted, all is depend on customer real needs.
About Delivery
Q4: What about our request for the early delivery of the goods?
A4: I think we can meet your requirement.
Q5: How long and how to get sample from us?
A5: 1) If you need some sample, we can make as per your request. You should pay for the transportation freight of samples and sample cost. The sample cost can be refundable if order is confirmed.
2) Lead time for making sample: about 2 days
3) The transportation freight of samples: the freight depends on the weight and packing size and your area.
About Company
Q6: How about your quality control?
A6: All the products will be 100% double check before the shipment.
Q7: How do you make our business long-term and good relationship?
A7: 1) We keep good quality and competitive price to ensure our customers benefit.
2) We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
About Payment
Q8: What payment methods your company accept?
A8: We accept most of the payment methods, but mainly accept TT, LC, Paypal.
Lemo B Series Connectors Male Female EGG FGG 2-16 Pin Circular Self Locking Connectors 4
